1928-36 Ford 5 Inch Dropped Tube Axle, 48 Inch

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Diameter:
2.00
Drop:
5.00
Material Thickness:
.250
Perch Centers:
36-3/8
King Pin Boss Length:
2-1/4
King Pin Centers:
48.00
Spindle Type:
Ford
1928-36 Ford 5 Inch Dropped Tube Axle, 48 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These precision made 5" drop axles accept 1937-48 Ford spindles and have 2-1/4" axle bosses. Tube axles are constructed using 2" x .250" wall seamless tubing and are set up with 1-1/4 degrees positive camber.

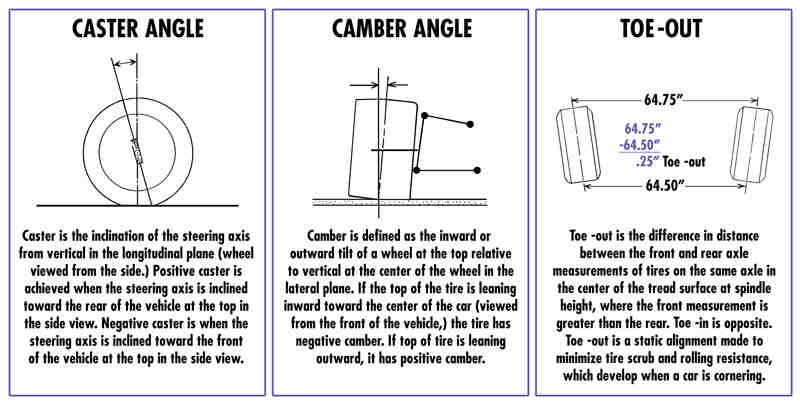

Caster Angle Illustration (GIF)

Leaf Spring Measuring Guide (Link)

Tube Axle Application Chart (GIF)

Item Details

48" King Pin Center
36-3/8" Perch Center

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Big T
Mobile,Al

quality merchandise [...]

March 13, 2010
The tech support guys have always help me choose the right parts and that has made this hobby a lot more enjoyable!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

Have a set of stock 1937 Ford spinles, what king pin set will I need? Also, have a new set of 11" cross drilled rotors for a Mustang 2 stock front spindle that I would like to used on these spindles, if possible. Thank for any info.( rotors have a 5--4.75 pattern)

PopsH1
sc
July 31, 2013

Have a set of stock 1937 Ford spinles, what king pin set will I need? Also, have a new set of 11" cross drilled rotors for a Mustang 2 stock front spindle that I would like to used on these spindles, if possible. Thank for any info.( rotors have a 5--4.75 pattern)

Answers

July 31, 2013
Jason
Your stock 1937 spindles will work on axle number 7022803 as the king pin diameter is the same 28 – 48. For the spindles you will need part number 91032121 for standard pin set or 91032115 for the needle bearing king pin set. Unfortunately we do not have a way to get your Mustang II rotors on the early Ford spindle. If it is a separate hub and rotor like the Wilwood kits then you could call Wilwood for the hub and bearings you will need.
1 answers

what length of spring is required for this axle? thanks

July 07, 2011

what length of spring is required for this axle? thanks

Answers

July 11, 2011
John
This axle with standard spring on top application would require a 31” spring such as our 91033029 or 91033030 with reversed eye, Posies number 5801002, 5801002L, or a mono leaf under number 91033041.
Page 1 of 1
