Unisteer 1928-34 Ford Cross-Steer Rack and Pinion, RH Drive

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Kit
Rack Type:
Manual
Thread Pitch:
11/16"-18
Turns Lock to Lock:
3.75
Overall Length:
33.00
Travel:
6.00

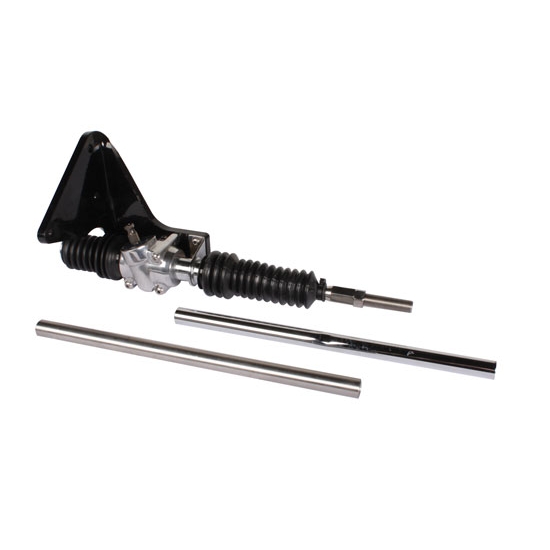

Unisteer 1928-34 Ford Cross-Steer Rack and Pinion, RH Drive

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

This is a great new concept for street rods with tubular or I-beam axles. It's hard to visualize how this works, but it's the hottest new idea out there!

Designed to replace the common Vega steering box, this rack and pinion assembly has a long passenger-side tie rod that hooks up to the spindle like a Vega-style drag link. The rack unit is mounted on a sturdy bracket that bolts to your existing Vega box mount. The rack mounts much lower and farther forward than a box to provide more clearance, and those who have installed the system report quicker steering response and easier effort than a steering box.

The racks have 9/16" 26-spline shafts and the extension shafts are 5/8" 36-spline, just like a Vega box. Plus, our steering shaft extension 910-32244 allows you to reuse your existing steering U-joints and shafts when replacing your Vega box.

Specify 11/16" or 5/8" tie rod thread. The 5/8" is used with a LH heim joint, 11/16" is used with a LH tie rod end. Outer tie rod and jam nut not included.

If you are using heim ends, you may wish to order heim 175-0316 and jam nut 910-01056. If using tie rod ends, you may wish to order tie rod end 910-02919 and jam nut 910-01159.

Note:  This is a Right Hand steer unit which will place the chassis bracket and pinion assembly on the right hand side of the chassis to replicate a vehicle which will have the driver seat and steering wheel/steering column assembly located on the right side of the vehicle.

Specs

  • From the back side of the frame mount to the end of threads on the rack is 19.5", 2.0" of that is threads
  • The drag link tube is 16.5" long
  • Assembled length is 34.0" long with about 1.0"-1.5" of adjustment

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

STEERING RACK HI THIS JOE FROM AUSTRALIA HAVE BOUGHT PARTS OF YOU IN THE PAST FOR MY T-BUCKET BUT I AM INTERESTED IN THIS RACK AND PINION FOR MY T-BUCKET DO YOU HAVE ANY PICS IF THIS ITEM FITTED TO A RIGHT HAND DRIVE T-BUCKET

jayjay
March 16, 2014

STEERING RACK HI THIS JOE FROM AUSTRALIA HAVE BOUGHT PARTS OF YOU IN THE PAST FOR MY T-BUCKET BUT I AM INTERESTED IN THIS RACK AND PINION FOR MY T-BUCKET DO YOU HAVE ANY PICS IF THIS ITEM FITTED TO A RIGHT HAND DRIVE T-BUCKET

Answers

March 17, 2014
EricM
This cross steer rack and pinion is for frame widths of the Model A thru 34 Ford and we apologize but we do not have a photo of one installed. The frame widths are over 25.5” and if attempting to use on a T bucket the tie rod portion would need to be shortened and re-tapped for the narrower frame. If you have a spring behind mount location of the rack would determine the turning radius without hitting the spring brackets. If your T bucket has spring on top it allows for a tighter radius. You will need to specify 5/8 if using spherical rod ends or 11/16 if using regular 7 degree tie rod ends. The modifications for a T bucket would be up to the installer.
