1928-29 Model A Roadster Windshield Frame, 2 Inch Chopped, Plain Steel

SAME DAY SHIPPING! Order within the next 7 hours 10 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
12.50
Overall Width:
42.63
Sold in Quantity:
Each
Overall Thickness:
.90
Finish:
Natural
Garage Sale:
No
Channel Depth:
.23
Channel Width:
.34
1928-29 Model A Roadster Windshield Frame, 2 Inch Chopped, Plain Steel

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Mr. Roadster '28-'29 Model A Roadster Chopped windshield frames feature one-piece constructon and are chopped 2" for a more streamlined appearance.

Note: No glass or windshield rubber included with our windshield frames.

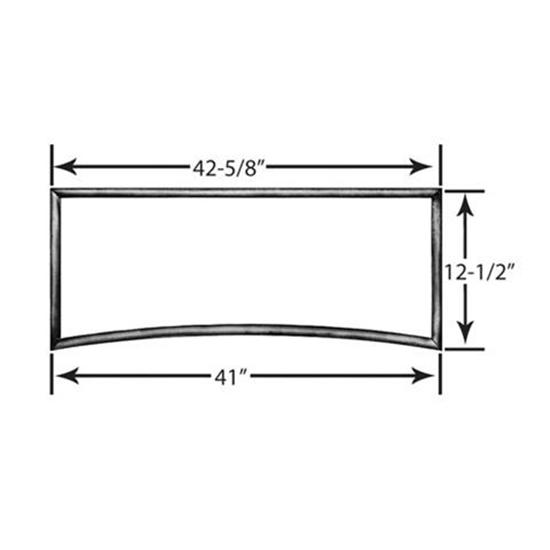

Specs

  • Overall Height:  12-1/2"
  • Width @ Top:  42-5/8"
  • Width @ Bottom:  41"

Item Details

2" Chopped

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

What is the dim. @ the mid point of the bottom radius and do you have the top windshield hinge, the one that runs the full length of the windowshield ThanksDon B

Barney2
Shelby Ohio 44875
February 04, 2014

What is the dim. @ the mid point of the bottom radius and do you have the top windshield hinge, the one that runs the full length of the windowshield ThanksDon B

Answers

February 05, 2014
EricM
This frame measures 10 716" tall in the center. It is for the open car and pivots from the side and not at the top like the closed cars. If you have a closed car we offer 55528401 and 55528301 in aluminum and also polished aluminum and these do have the hinge across the top. We also carry the majority of the hardware and rubber needed for a complete job.
1 answers

does this frame have the mounting studs at the top ? Does the frame have the slots on the sides and bottom to receive the rubber seal Item #: 55592800

lowgrape
Kelowna, BC, Canada
February 05, 2013

does this frame have the mounting studs at the top ? Does the frame have the slots on the sides and bottom to receive the rubber seal Item #: 55592800

Answers

February 06, 2013
Jason
The chopped Model A windshield frame number 55592800 does not come with the pivot studs, however it is drilled and tapped to accept the stud number 91123102, swivels number 91113110 and wing nut number 91123131. The bottom has the T slot for the seal which is included but the sides do not have this provision.
1 answers

I have a 1928 Austin with an Australian Holden tourer body. The windscreen is made from a H section the same as Ford used. Can you send me a picture or drawing of the section of your windscreen frame. Could you supply short lengths to repair my windscreen if your section is compatible. Cheers Monty

monty
london Uk
April 17, 2015

I have a 1928 Austin with an Australian Holden tourer body. The windscreen is made from a H section the same as Ford used. Can you send me a picture or drawing of the section of your windscreen frame. Could you supply short lengths to repair my windscreen if your section is compatible. Cheers Monty

Answers

April 20, 2015
John
Expert
We apologize but do not have a cross section drawing but do have the specifics for dimensions. The tube is .90" and on the glass side there is a channel .34" wide and .23" deep. On the post and body side there is a T slot that accepts the T style rubber seal. The T rubber is part number is 55592800 for a visual look on our website.
Page 1 of 1
