1928-29 Model A Roadster Windshield Frame, 2 In Chopped, Chrome Steel

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Hardware Included:
No
Overall Height:
12.50
Overall Width:
42.75
Overall Thickness:
.90
Channel Depth:
.23
Channel Width:
.34

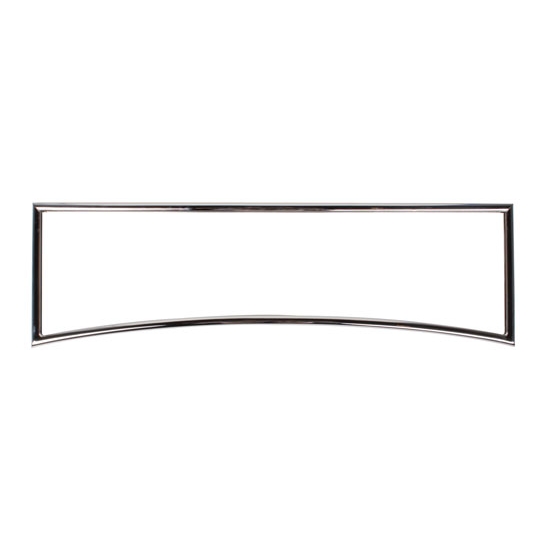

1928-29 Model A Roadster Windshield Frame, 2 In Chopped, Chrome Steel

Click image to enlarge

Details

Reviews (1)

Q & A (5)

What's in the Box

Info

Mr. Roadster '28-'29 Model A Roadster Chopped windshield frames feature one-piece constructon and are chopped 2" for a more streamlined appearance.

Note: No glass or windshield rubber included with our windshield frames.

Specs

  • Overall Height:  12-1/2"
  • Width @ Top:  42-5/8"
  • Width @ Bottom:  41"

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Roadsterman1946
Verified Purchaser
Gainesville Ga

This product is beauttifully finished.

April 09, 2015
I am very pleased with the frame. Although I have not yet installed it, I have verified the fit and the dimensions. It is well built and the polished stainless steel has a smooth and bright shine.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

do you have a complete list of all hardware to install the windshield frame and posts?

edselcomet
January 13, 2015

do you have a complete list of all hardware to install the windshield frame and posts?

Answers

January 14, 2015
EricM
We apologize but do not carry the two bolts per side to attach the posts to the body. We do offer the following: 91123102—Windshield studs times 2 91113110—windshield swivels times 2 91123131—wing nuts in chrome times 2 If desired the windshield finger pulls number 91123141 at one pair.
1 answers

How does this frame attach to the windshield stanchions? The original frame attaches to the stanchions with a stud that holds the frame together and attaches the frame to the stanchions. This attachment is located on the top sides of the frame.

Roadsterman
Pendergrass
December 14, 2014

How does this frame attach to the windshield stanchions? The original frame attaches to the stanchions with a stud that holds the frame together and attaches the frame to the stanchions. This attachment is located on the top sides of the frame.

Answers

December 15, 2014
EricM
This windshield frame will use the original style mounting to the stanchions. It will require drilling and tapping the frame and aluminum slugs inside the frame in the location needed on your Model A. On the chopped frames you need the chopped posts or shorten your own, studs 91123102, swivels 91113110, and wing nuts 91123131 will also be needed.
1 answers

How do you install the glasss on a one piece winshield frame? Will the rubber from an original 1928 Ford roadster fit your frame?

Roadsterman
Georgia, USA
December 01, 2014

How do you install the glasss on a one piece winshield frame? Will the rubber from an original 1928 Ford roadster fit your frame?

Answers

December 02, 2014
EricM
We apologize for any confusion but by one piece we are referring to a one piece glass as opposed to the early cars where there was a top half and a bottom half and the glass was actually two pieces. The frame pivoted to allow air flow into the occupant compartment. On the one piece in question the bottom horizontal bar detaches for glass installation. A glass shop normally cuts the glass and uses window welting or set tape between the frame and the glass.
1 answers

will this fit on my 29 phaeton?

TD29
Norway
September 15, 2013

will this fit on my 29 phaeton?

Answers

September 16, 2013
Jason
According to available information the Roadster and Phaeton share the same windshield glass and frame. Compare your needs to overall width of 42.750” and overall height of 12.50” on our part number 55528022.
1 answers

Do you sell the glass for your 2" chopped 28-29 roadster windshield frame?

LarryT
May 19, 2013

Do you sell the glass for your 2" chopped 28-29 roadster windshield frame?

Answers

May 20, 2013
Jason
Sorry, Speedway does not offer glass for any of our windshield frames.
