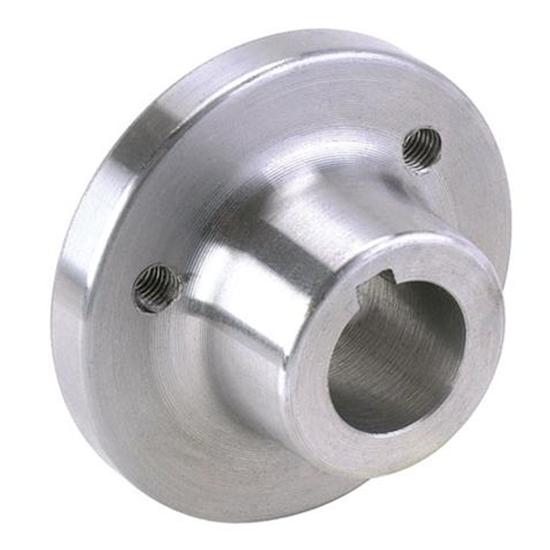

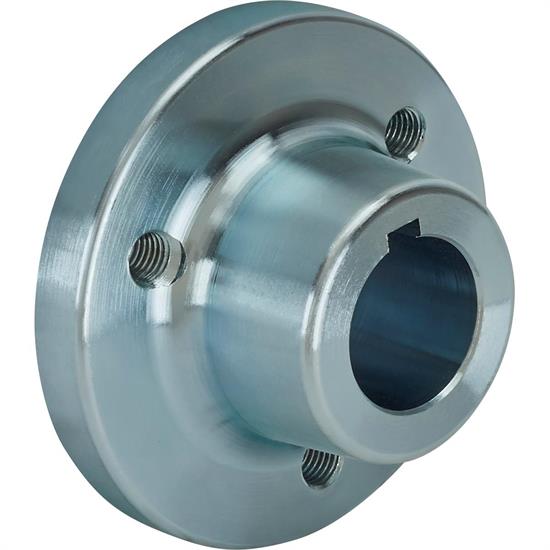

1928-1948 Ford Steering Wheel Adapter Hub

Specs
Material Type:
Steel
Sold in Quantity:
Each
Overall Thickness:
1.13
Finish:
Zinc
Diameter Small End :
1.260
Diameter Big End:
2.450
Steering Wheel Style:
3 Bolt
Flange Thickness:
.36
Taper Large End:
.755
Taper Small End:
.680
Key Width:
.19
Garage Sale:
No
1928-1948 Ford Steering Wheel Adapter Hub

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Fit a steering wheel with modern 3-hole pattern to 1928-1948 Ford steering column. Steel hub with 7° taper. Works with all Grant wheels.

Installs onto steering column.

Customer Reviews

Rated 3.9 out of 5 by 10 reviewers.
RATING BREAKDOWN
10 reviews
5 Stars
6
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
2
RECOMMEND THIS PRODUCT:

pete
Verified Purchaser
falls city, NE

will not work on 48 ford

July 23, 2015
Once item is installed there are no threads protruding to install the steering column nut..
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Matt
Visalia, Ca

Does not fit a 1928 Ford Model A

July 16, 2015
We ordered the part and did not fit a 1928 Ford Model A steering column. It looks nice in the bag. But I am disappointed in the fact we ordered the parting thinking it would fit and did not. So buyer beware
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Bill
Verified Purchaser
Terre Haute,In

nice

May 18, 2015
worked out perfect on my 46 Ford steering shaft
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ChopTopJimmy
Verified Purchaser
Michigan, USA

The product was a huge disappointment

November 23, 2013
Product didn't fit my Original 1931 Model A Ford steering column as advertised. Had to take part to a Machine Shop to have it turned in a lathe so it would fit.
Cons:
  • bad fitment
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team issued this customer a partial refund of 50% off for the extra work needed on this item. We apologize for any inconvenience this may have caused. Speedway Motors will gladly replace defective products, if returned without modifications.
fijifever1
San Juan Capistrano, CA, USA

This product can be used on multiple veh

September 26, 2013
I bought this adapter for my Model A hot rod.I was able to use this part on a 1955 vw bus steering column and box.Taper matched perfectly and bolted right on.I would recommend this to all who are looking to adapt taper shaft steering column to 3 bolt steering wheel.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jimmyscats
Verified Purchaser
San Antonio, TX, USA

Very nice part

June 09, 2013
The adapter is beautifuly machined. I have not used it yet because I need to make it fit the non tapered Model T steering shaft but it should work well. JF
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Ply37
Lake Havasu City, Az

Fits '37 Plymouth also

October 07, 2012
I used the adapter on my 1937 Plymouth. Taper is the same and the keyway is the same.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

JOESPRO
Verified Purchaser
ALBUQUERQUE,NM

IF NEEDED I WILL BUY AGAIN

July 29, 2012
IT'S JUST AN EASY PRODUCT TO USE
Pros:
  • Easy To Use
  • Lightweight
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Frank
Verified Purchaser
New Jersey

This looks as good as the picture

January 29, 2012
Very nice part. 1/4-28 threads. Taper is right and the keyway, too. Nice finish and it's plated. Well made.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jake
Verified Purchaser
la,la

I made it work

April 23, 2011
I used it on a 52 Ford. drilled installed set screws, but it works fine.
Pros:
  • Versatile
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 4 answers

2 answers

what size is the taper? I need a 3/4" keyed tapered hub. will this fit a helm steering unit with a 3/4 inch keyed taper shaft?

puller
February 11, 2013

what size is the taper? I need a 3/4" keyed tapered hub. will this fit a helm steering unit with a 3/4 inch keyed taper shaft?

Answers

September 27, 2013
fijifever1
The taper is 5/8 " but will fit 16mm vw taper shaft
February 12, 2013
Jason
This 1928-1948 Ford steering wheel adapter hub is .755" at large end and .680" at small end. The key width is .1875"
1 answers

If this adapter is used,is there any way to use the original horn wire or to install a horn button on the wheel,and does it leave much of a gap between the collum and the adapter?

January 03, 2011

If this adapter is used,is there any way to use the original horn wire or to install a horn button on the wheel,and does it leave much of a gap between the collum and the adapter?

Answers

January 06, 2011
John
You inquired about our adapter number 91632765 which adapts an aftermarket 3 bolt steering wheel to the early 28-48 tapered and keyed column shaft. The dimensions are as follows: Top of Taper = .755" Bottom of Taper = .680" Length of Taper = 1.130" Keyway Width = 3/16" Lower Flange Thickness = .360" Now to utilize a horn button and your existing wire I would suggest our steering wheel adapter kit number 4103196 which has more than what you need but is the most economical way. If your horn wire runs up the center of the shaft it would be possible to use these components. Other than that you will need to drill a hole in the adapter through which to run the wire. I would need to know your exact application to give any other suggestions.
1 answers

Can you tell me how many of these do you have in stock??

Turbobug
commerce, Ga.
May 27, 2011

Can you tell me how many of these do you have in stock??

Answers

May 30, 2011
Tim
Thank you for your interest in this item. We do currently have many in stock, so if you place your order we will be able to accommodate you!
