1928-1931 Ford Model A LED Tail Light Conversion Lens

1928-1931 Ford Model A LED Tail Light Conversion Lens
1928-1931 Ford Model A LED Tail Light Conversion Lens
1928-1931 Ford Model A LED Tail Light Conversion Lens

Click image to enlarge

Details

Reviews (3)

Q & A (2)

What's in the Box

Info

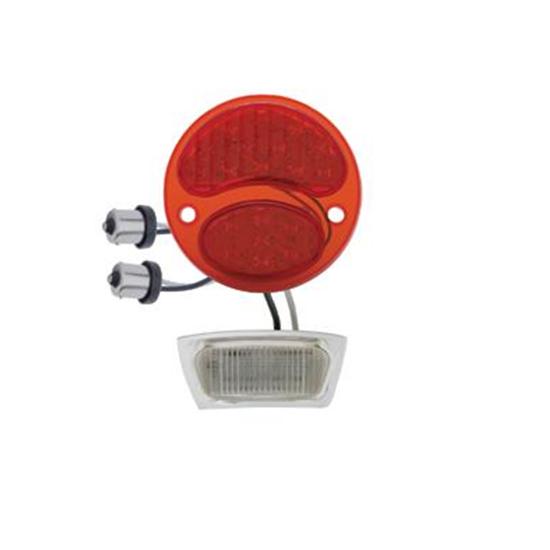

These direct replacement tail light lenses will convert your Model A taillights to powerful and bright LED lights. Choose left or right sides.
  • 19 Super Bright Red LEDs
  • Drivers side (Left side) includes a 4 LED White License Light (pictured)
  • Epoxy coated, fully sealed electronics
  • Two 1156 plugs
  • Plastic lens
  • Solid state circuit board for 12V systems

1928-1931 LED Tail Light Conversion Instructions (pdf)

Specs

Wire colors:

  • Housing Grounded
  • Tail - Black/White (lower socket)
  • Stop - Red/White (upper socket)

Customer Reviews

Rated 4.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Gardon
Verified Purchaser
Derby is.

Works sell

April 28, 2016
Fit model A tail light and worked well but pinched a wire and ruined that light.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BEEs
Verified Purchaser
Sandy, OR, USA

Put on My 1927 Model T Tudor. Has high b

March 30, 2015
I have Model A Tail lights on the the 1927 Model T Street Rod. I will now put them on my 1931 Model A restored Tudor. Both cars painted 1931 Model A colors Bronson Yellow and Seal Brown for the "Bee Look"
Cons:
  • light did not fit the stock stainless steel face
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

blkhnklft
Verified Purchaser
San Leandro, CA

Make sure you have later style housings

August 26, 2011
Lights are very bright. As it arrives it will not fit in drum style light housings
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 3 answers

2 answers

Do you have these in 6 volt?

Dick
Albion N Y
July 17, 2011

Do you have these in 6 volt?

Answers

March 31, 2015
BEEs
12 volt Neg. Ground on both Fords
July 18, 2011
John
These Model A conversion lens to LED are only available in 12 volt. Even though the current draw is minimal 6 volts will NOT furnish the brightness the lights are designed for.
1 answers

Is the driver side lens two(2) pieces? Does the license plate bulb have a quick connect to the main lens? Or are the two components hard wired together?

Matt
August 23, 2016

Is the driver side lens two(2) pieces? Does the license plate bulb have a quick connect to the main lens? Or are the two components hard wired together?

Answers

August 23, 2016
John
Expert
This lens for the Model A has a separate lens for the license plate illumination and it is hard wired in conjunction with the one piece tail light/stop and turn filaments. There is a pigtail for each bulb socket in the model A tail light housing that simply plug in place of the original bulbs. These are 12 volt only.
Page 1 of 1
