1928-1929 Ford Steel Radiator Splash Aprons

Specs
Material Type:
Steel
Overall Height:
8.50
Overall Width:
23.25
Sold in Quantity:
Each
Finish:
Painted
Depth:
8.13
Material Thickness:
.04
Inside Width:
21.00
Garage Sale:
No
1928-1929 Ford Steel Radiator Splash Aprons
1928-1929 Ford Steel Radiator Splash Aprons

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

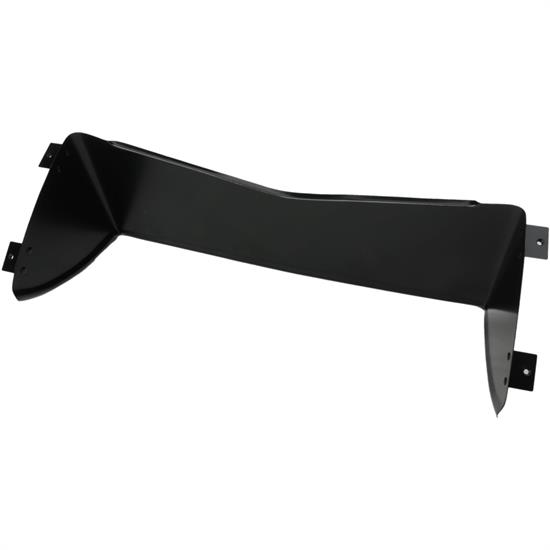

This 1928-29 Ford steel radiator front splash apron has original-style brackets riveted to the sides for attachment.  These brackets have threadnuts welded to those brackets.

  • Width side-to-side at rear of panel is 22-5/8”
  • Width side-to-side at front of panel is 21-1/8”
  • Front to rear at sides is 7-15/16” or nearly 8”
  • Front to rear at center is 6-1/8”
  • Vertical height at sides is 8-1/8”
  • 4 mounting tabs (2 per side) extend 1” past the above dimensions
  • Mounting tabs have nuts welded to them for mounting
  • Mount center side to side horizontal is about 24”
  • Vertical mount spacing is 5-5/8” center to center. (this is approximate because of the angle difference on tabs)
