1927-1934 Small Block Ford Chassis Headers, AHC Coated

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
AHC Coated
Flange Style:
Oval Port
Header Tube Type:
Chassis
Gasket(s) Included:
Yes
Hardware Included:
Yes
Overall Height:
18.00
Tube Length:
19.00
Port Height:
1.63
Port Width:
1.24
Flange Thickness:
.31
Header Dimension A:
3.00
Header Dimension B:
18.00
Header Dimension C:
19.00
Drivers Side Dimension A:
3.80
Drivers Side Dimension B:
17.88
Drivers Side Dimension C:
20.50
Passenger Side Dimension A:
4.85
Passenger Side Dimension B:
18.25
Passenger Side Dimension C:
19.50
Collector Diameter :
2.5
Tube O.D.:
1.5
Collector Length:
3.5
Notes
Includes a pair of reducers (2.50" to 2.25")
1927-1934 Small Block Ford Chassis Headers, AHC Coated
1927-1934 Small Block Ford Chassis Headers, AHC Coated
VIDEO
1927-1934 Small Block Ford Chassis Headers, AHC Coated

Click image to enlarge

Please note the following about this product:

  • This item is sold as a pair.

Details

Reviews (2)

Q & A (2)

What's in the Box

Info

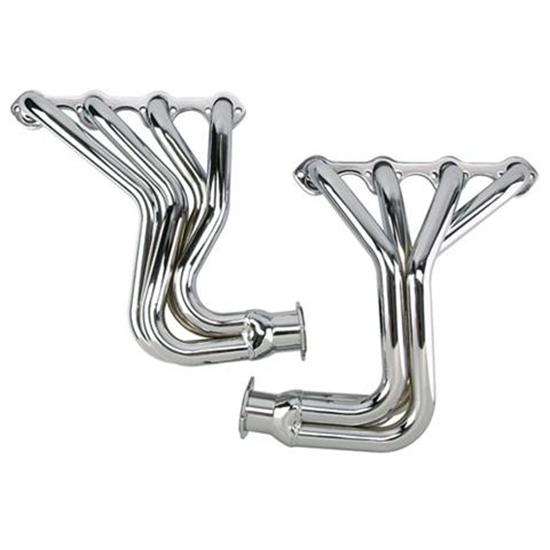

Now you can get full-length header performance when you put a Ford V8 in your Ford street rod! These chassis headers are designed to fit 289-302 Small Block Ford V8s in 1927-1934 Ford cars and pick-ups. These ceramic coated headers provide superior performance and durability.

  • Full-length header performance
  • Designed to fit in narrow street rod chassis
  • Quality 16 gauge steel construction
  • Includes gaskets, bolts and reducers

Header Dimensions (GIF)

Item Details

Catalog Correction: Headers have 2-1/2", not 3" collectors.

Application

  1. Headers fit inside the frame rails and exit under the vehicle.
  2. Headers will clear stock, Mustang, or Vega steering boxes.
  3. Check motor mount position before ordering.
  4. Fits with side or front motor mounts.
  5. Not legal for sale or use in California on pollution controlled vehicles.
  6. 2-1/2” collectors
  7. 1-1/2” primaries
  8. Auto Transmission:  Yes
  9. Manual Transmission:  Yes
  10. Port Shape:  Oval
  11. Header Dimensions (GIF)

Notes

Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained).  If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300®® F.

Warranties

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.



Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Maniac Minter
Verified Purchaser
Benton Ky

Awesome product

June 26, 2016
If you are building a model A these are great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Posjr
San Jose, CA, USA

Perfect fit

November 11, 2012
Bought this for my 1932 ford with a 302. Headers fit perfect. Hangs same level as tranny pan. All I had to do was grind 1/4 of motor mount and shorten motor mount bolt. Fits with stock over sized starter, and clears mustang 2 steering shaft. It was to easy, thanks.....
Pros:
  • Fits perfect
Cons:
  • to easy
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

i have a 1984 302 engine with e7 heads will these work?

nick89
February 04, 2014

i have a 1984 302 engine with e7 heads will these work?

Answers

February 04, 2014
EricM
Yes these headers will work with your 1984 302 engine.
1 answers

will they work with 302/aod trans in 56 Ford pick up?

steve
Decatur, Il.
January 20, 2012

will they work with 302/aod trans in 56 Ford pick up?

Answers

January 20, 2012
John
Part number 930F3H These headers work on many tight fit applications such as the 27-34 Ford vehicles. Your 56 Ford pickup has wider frame dimensions than these earlier years so side clearance should not be an issue. Side to side configuration is different as shown in the photos and cross member clearance may be the only concern. From the head out to the furthest point is 3”, from the top of the flange to the lowest point at the collector is 18”, and from the front of the flange to then end of the collector going rearward is 19”.
Page 1 of 1
