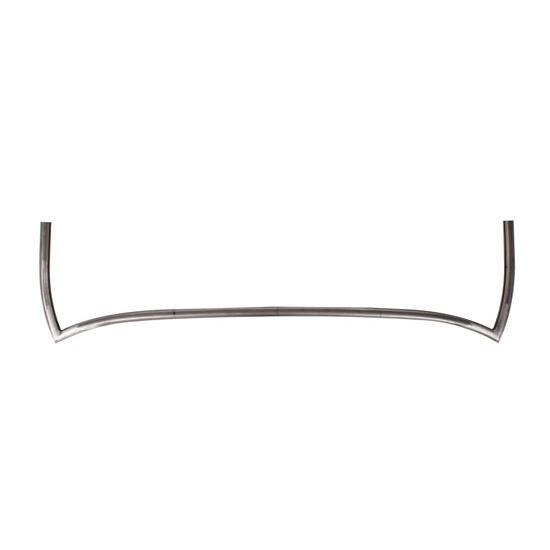

1926-27 Model T Roadster Windshield Frame, Bottom Only, Plain

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Overall Height:
9.75
Overall Width:
38.50
Channel Depth:
.25
Channel Width:
.31
1926-27 Model T Roadster Windshield Frame, Bottom Only, Plain

Click image to enlarge

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

These beautiful replacement '26-'27 Model T windshield frames are available as a complete frame kit or just the bottom section to fit a specific application. These are 7/8" O.D. and the glass channel is 5/16" wide and 1/4" deep. The lower part of the frame next to the body accepts our T seal number 555-92600 and the slot for the seal is 1/8" wide with provision to accept the "T" style seal.

No glass or windshield rubber included with our frames. The slugs that are included with this windshield frame must be positioned, drilled and tapped by the installer.

  • 35" wide at bottom of frame
  • 38-1/2" overall width
  • 9-3/4" tall

NOTE: You will also need (4) studs, wing nuts, and swivels (all sold separately) along with this frame.

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

does part 555-26031 come with slugs and glass caps

BigT27
Half Moon Bay, CA, USA
March 01, 2014

does part 555-26031 come with slugs and glass caps

Answers

March 03, 2014
EricM
Yes, slugs and glass caps are included with this windshield frame.
1 answers

Will this frame fit a stock, steel, T roadster, or just your fiberglass body? How tall is the frame and can the bottom part of the frame just be run on the car for a short/chopped look? What windshield posts will I need to fit this frame and my stock,stee

BigDaddy
Falls Mills Va
October 20, 2011

Will this frame fit a stock, steel, T roadster, or just your fiberglass body? How tall is the frame and can the bottom part of the frame just be run on the car for a short/chopped look? What windshield posts will I need to fit this frame and my stock,stee

Answers

October 21, 2011
John
The original Model T dimensions were not as exact as modern day vehicles and a plus or minus ¼” specification sometimes leaves a less than desirable fit. These lower frames fit the majority of the 1926-27 T cowl curvatures. If you want to run just the lower half you would need to run the standard poses such as 91113202 or 91113203 and remove the upper portion above the hole for the attachment stud. Doing so on the chrome is probably not desired. Then you would use the study and swivel plus wing nut to hold in place. Since matching to the cowl may require some up and down adjustment the frame and inner aluminum slug will need to be drilled and tapped per your particular application.
