1926-1927 Model T Windshield Posts, 4 Inch Chopped, Brass

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Brass
Overall Length:
22.50
Sold in Quantity:
Pair
Finish:
Natural
Thread Pitch:
5/16"-18
Hardware Included:
Yes
Garage Sale:
No
Notes
From the bottom of the post to the hole is 20.25"

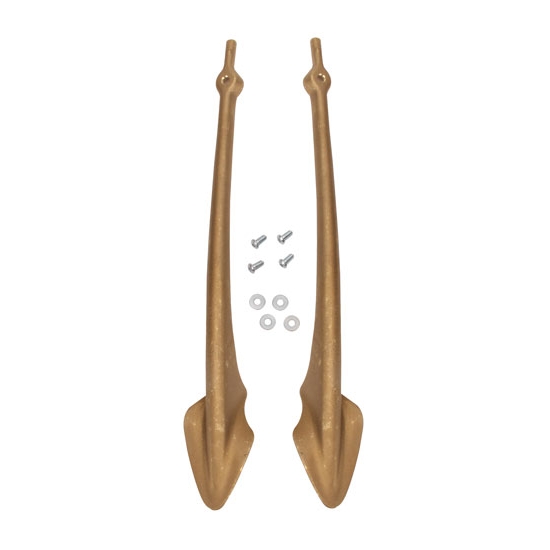

1926-1927 Model T Windshield Posts, 4 Inch Chopped, Brass
1926-1927 Model T Windshield Posts, 4 Inch Chopped, Brass

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These 1926-27 Ford Model T 4" chopped brass posts are designed for use with Mr. Roadster® chopped windshield frame. One-piece design.

From the bottom most tip to the center of the pivot hole is 20-1/4".

Notes

  • Overall length or height is 22 ½”
  • Top down to center of frame mounting pivot is 2-5/16”
  • Bottom up to center of frame mounting pivot is 20-3/16”
  • Top down to backside of radius at cowl is 16-15/16”
  • Top down to front side of radius at cowl is 17-3/16”
  • There are two tapped holes on inside of base for mounting from inside of cowl.

Item Details

4" Chopped
