1926-1927 Model T 4 Inch Chopped Roadster Windshield Frame, Plain

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Garage Sale:
No
Overall Height:
16.00
Overall Width:
38.50
Overall Thickness:
.90
Channel Depth:
.25
Channel Width:
.32

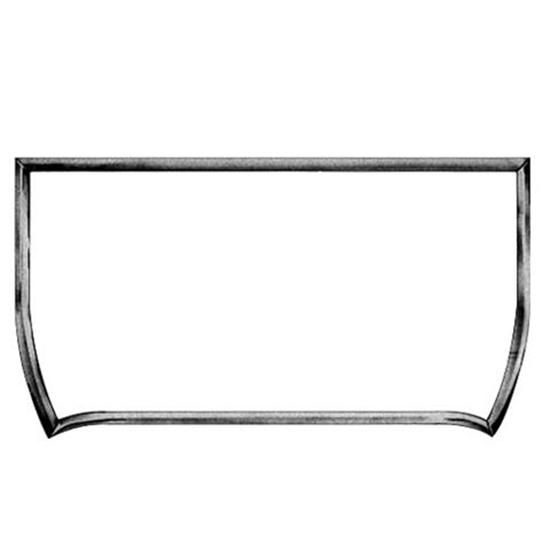

1926-1927 Model T 4 Inch Chopped Roadster Windshield Frame, Plain

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Mr. Roadster '26-'27 Model T windshield is a one-piece design like a Model A roadster. "Chopped" to a height of 16" tall.

These are 7/8" O.D. and the glass channel is 5/16" wide and 1/4" deep. The lower part of the frame next to the body accepts our T seal number 555-92600 and the slot for the seal is 1/8" wide with provision to accept the "T" style seal and are 16" tall.

Note: No glass or windshield rubber included with our windshield frames.

Specs

  •   Length of sides is 16”
  •   Width at top is 38 7/16”
  •   Width at bottom is 35 1/8”
  •   Height in center is approximately 13 ¾”
  •   Hole for pivot stud is 2 5/16” down from top
  •   Sides radius inward towards bottom to give the smaller width dimension quoted above.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Grumpy G
Verified Purchaser
Verified Reviewer
Cleveland ohio

Windshield frame

May 12, 2015
Service was good .item was back ordered however it was delivered before promised.I didn't have to chase it down.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

what is this frame made of?

hotrodpax
Idaho
August 30, 2014

what is this frame made of?

Answers

September 02, 2014
EricM
This is a steel windshield frame.
1 answers

in the picture it appears to be flat at most of the bottom until it curves down , for the most part . is this correct? any possible way to get a template of the perimeter , or possibly a real photo of the bottom straight on , the measurement look correct for my dash ( custom tank flat on top , not contoured like a 27 , ) hoping it looks like the picture ?

molaskey1
broomfield colorado
May 27, 2013

in the picture it appears to be flat at most of the bottom until it curves down , for the most part . is this correct? any possible way to get a template of the perimeter , or possibly a real photo of the bottom straight on , the measurement look correct for my dash ( custom tank flat on top , not contoured like a 27 , ) hoping it looks like the picture ?

Answers

May 29, 2013
Jason
The 1926-27 T windshield frame number 55526041 has a flat bottom except at the ends where it curves downward to match the outer portion of the cowl radius. The photo can be enlarged and brought down to the lower portion of your screen for verification.
1 answers

Will this frame except stock rubber that fits on bottom of the frame?

budds
Lake Isabella, CA, USA
March 23, 2013

Will this frame except stock rubber that fits on bottom of the frame?

Answers

March 25, 2013
Jason
The model T chopped windshield frames are 7/8" O.D. and the glass channel is 5/16" wide and 1/4" deep. The lower part of the frame next to the body accepts our T seal number 55592600 and the slot for the seal is 1/8" wide with provision to accept the "T" style seal
1 answers

Hello I have an all steel 26 T Roadster will this windshield fit.

Rob
Des Moines iowa
August 14, 2011

Hello I have an all steel 26 T Roadster will this windshield fit.

Answers

August 16, 2011
John
These 4” chopped frames are designed to fit the stock width original dimensioned 26 and 27 roadsters. Body irregularities of the early years may require some modification for exact fit. You may also be interested in the windshield stud number 91656181, the pivot number 91113110, and the 4 inch chopped posts in plain under part number 91656270 or chrome under number 91656271. The wing nut of choice in chrome or brass will also be another required part not supplied with the bare frame.
Page 1 of 1
