1926-1927 Model T 4 Inch Chopped Roadster Windshield Frame, Chrome

Free Shipping Free Shipping
Specs
Material Type:
Steel
Overall Height:
16.00
Overall Width:
38.63
Sold in Quantity:
Each
Overall Thickness:
.90
Finish:
Chrome
Garage Sale:
No
Channel Depth:
.23
Channel Width:
.34

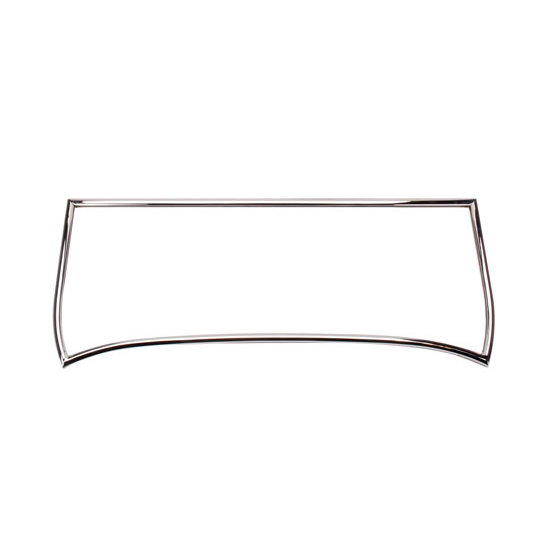

1926-1927 Model T 4 Inch Chopped Roadster Windshield Frame, Chrome

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Mr. Roadster '26-'27 Model T windshield is a one-piece design like a Model A roadster. "Chopped" to a height of 16" tall. Available in plain or chrome plated steel.

These are 7/8" O.D. and the glass channel is 5/16" wide and 1/4" deep. The lower part of the frame next to the body accepts our T seal number 555-92600 and the slot for the seal is 1/8" wide with provision to accept the "T" style seal and are 16" tall.

Note: No glass or windshield rubber included with our windshield frames.

Specs

  •   Length of sides is 16”
  •   Width at top is 38 7/16”
  •   Width at bottom is 35 1/8”
  •   Height in center is approximately 13 ¾”
  •   Hole for pivot stud is 2 5/16” down from top
  •   Sides radius inward towards bottom to give the smaller width dimension quoted above.

Item Details

4" Chopped

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
