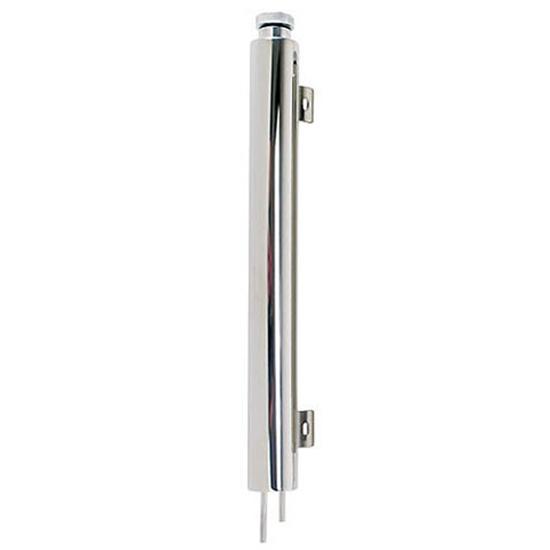

Speedway Polished Radiator Coolant Overflow Expansion Tank, 2 x 19 In.

Specs
Sold in Quantity:
Each
Finish:
Polished
Material Type:
Stainless Steel
Hardware Included:
Yes
Centerline of Holes:
13.25
Overall Height:
19.00
Filler Neck Height:
.50
Slot Length:
.50
Slot Width:
.25
Tube O.D.:
.25
Overall Diameter:
2.00
Flange Width:
1.50
Cap Diameter:
1.60
Capacity:
28.00
Notes
Includes mounting tabs. This tank is not designed to be pressurized. Short tube is radiator overflow hose, long tube is for venting tank.
Speedway Polished Radiator Coolant Overflow Expansion Tank, 2 x 19 In.
Speedway Polished Radiator Coolant Overflow Expansion Tank, 2 x 19 In.
Speedway Polished Radiator Coolant Overflow Expansion Tank, 2 x 19 In.

Click image to enlarge

Details

Reviews (2)

Q & A (0)

What's in the Box

Info

2" outside diameter, 1⁄4" O.D. nipples - works with any radiator. Stops loss of coolant and prevents pulling air into system when cooling off. Polished stainless steel expansion reservoir tank with screw-off cap.

  • Heavy Wall
  • Billet Screw in Cap
  • Clear Neoprene Seal

Expansion Tank Installation Instructions (PDF)

Learn more about cooling with recovery systems and how they work by reading our tech article. Cooling System Principles.

Application

  • Mounting holes are 13-1/2" center to center

Installation Note:

  • This tank is designed to catch overflow from the radiator. It cannot be pressurized.
  • Short tube is for the radiator overflow hose
  • Long tube is for the overflow / dump hose (vent for the tank)

Specs

  • Mounting holes are 13-1/2" center to center

Installation Note:

  • This tank is designed to catch overflow from the radiator. It cannot be pressurized.
  • Short tube is for the radiator overflow hose
  • Long tube is for the overflow / dump hose (vent for the tank)
