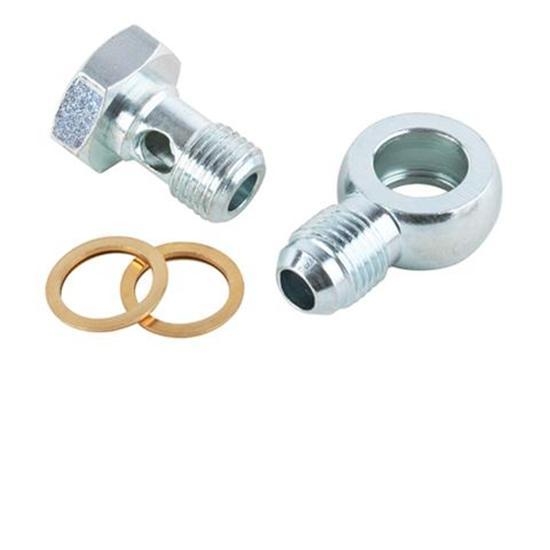

14mm to Male AN6 Banjo Bolt Fitting for Power Steering Pump

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Angle:
90 degree
Outlet Fitting:
14mm x 1.50
Inside Diameter:
.56
Notes
Includes sealing washers.

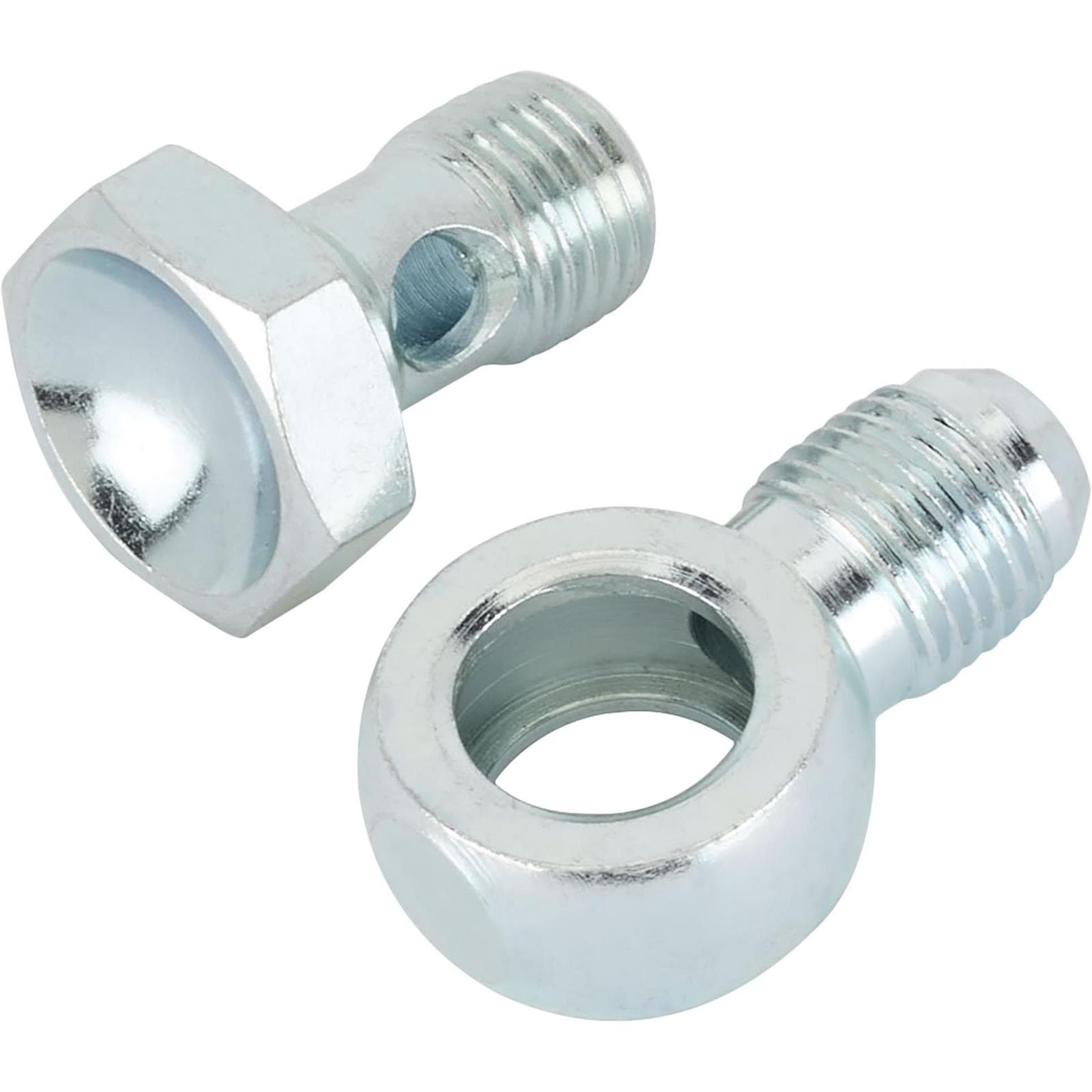

14mm to Male AN6 Banjo Bolt Fitting for Power Steering Pump

Click image to enlarge

Details

Reviews (1)

Q & A (8)

What's in the Box

Info

These power steering adapter fittings are designed to simplify the hose connection on your power steering lines. They are made from quality material and are designed to withstand even the harshest environments. The adapter fittings are the perfect solution for adding new lines or for those tight-fit areas where normal, straight fittings won't fit.

Banjo Bolt Fitting for Power Steering Pump

  • 14mm to Male AN6
  • Zinc-plated steel assembly
  • For the pressure connection (outlet) to the pump.
  • 90 Degree
  • Swivel
  • Male Threads

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Nancy
Verified Purchaser
Columbus, GA

I would buy from this company again

October 12, 2016

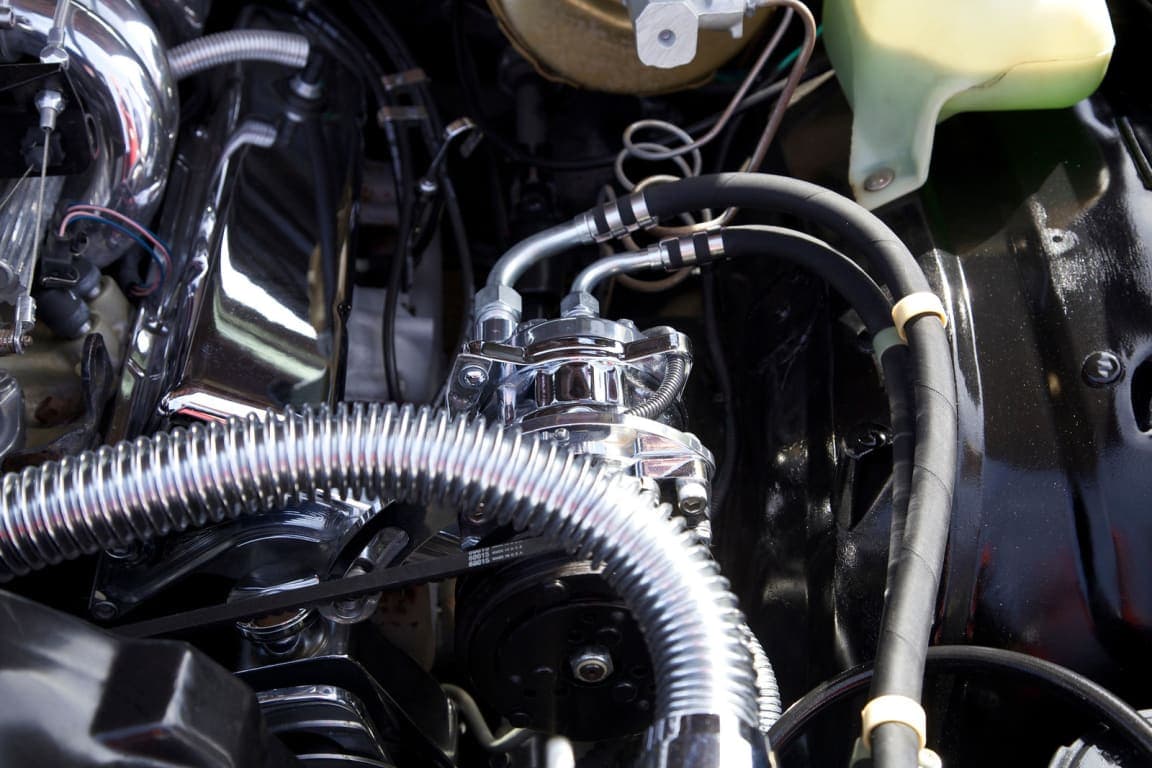

Part was perfect fit for my project
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 8 answers

1 answers

application will these - 6 AN banjo fittings work on the high pressure side of a hydroboost unit?

Domo
March 04, 2015

application will these - 6 AN banjo fittings work on the high pressure side of a hydroboost unit?

Answers

March 04, 2015
EricM
Yes this banjo fitting can be used on a high pressure hydro-boost setup. Check to be sure that the thread size of 14mm is correct for your application.
1 answers

Is the thread pitch for the M 14 side 1 or 1.5 or something else?

freebird
May 18, 2014

Is the thread pitch for the M 14 side 1 or 1.5 or something else?

Answers

May 19, 2014
Travisp
This fitting is 14mm x 1.5.
1 answers

will this fit a 96 eclipse? mine originally uses a 20mm banjo will this substitute it?

phillip12
April 07, 2014

will this fit a 96 eclipse? mine originally uses a 20mm banjo will this substitute it?

Answers

April 07, 2014
EricM
No this will not fit a 20mm banjo bolt. Sorry I do not offer a banjo that large.
1 answers

Can you get this in a 16mm to AN6 size? 1955 F100 with Toyota power steering box

rogerf100
Oklahoma City, OK, USA
May 27, 2013

Can you get this in a 16mm to AN6 size? 1955 F100 with Toyota power steering box

Answers

May 28, 2013
Jason
The only 16mm banjo fitting we offer is part #6174830, this fitting is designed to accept an AN-6 stainless steel braided wire high-pressure hose.
1 answers

Will this fitting fit a Fox body Mustang rack? The 79-93 Mustang rack has a 14mm female thread for the high pressure port in the rack. This normally accepts an o-ring style fitting. I don't have room to use an adapter and a 90 deg fitting, so this banjo would be perfect if it will seal.

rsimons
March 01, 2013

Will this fitting fit a Fox body Mustang rack? The 79-93 Mustang rack has a 14mm female thread for the high pressure port in the rack. This normally accepts an o-ring style fitting. I don't have room to use an adapter and a 90 deg fitting, so this banjo would be perfect if it will seal.

Answers

March 01, 2013
Jason
This banjo bolt power steering fitting is 14mm and should work with your 14mm threaded rack. This comes with as pair of stepped brass crush washers for sealing. Thickness - .485" Banjo bolt head size - 7/8" across the flats(wrench size)
1 answers

What is the outer diameter of the banjo.

kurt
April 15, 2015

What is the outer diameter of the banjo.

Answers

April 16, 2015
Eric
Expert
The banjo is 1" OD.
1 answers

Is the bolt head 7/8?

Jay
Florida
April 17, 2015

Is the bolt head 7/8?

Answers

April 17, 2015
Eric
Expert
Yes the banjo bolt requires a 7/8" wrench.
1 answers

What is the size of the through hole in the adapter for the banjo bolt? I ask because another company's adapter has an 18mm through hole and a special stepped bolt to make it fit 14mm. I need a through hole that is about 14mm for my application.

14wrench
Houston, TX
July 01, 2016

What is the size of the through hole in the adapter for the banjo bolt? I ask because another company's adapter has an 18mm through hole and a special stepped bolt to make it fit 14mm. I need a through hole that is about 14mm for my application.

Answers

July 01, 2016
Charles
Expert
The ID of the banjo fittings in this kit is 14mm.
