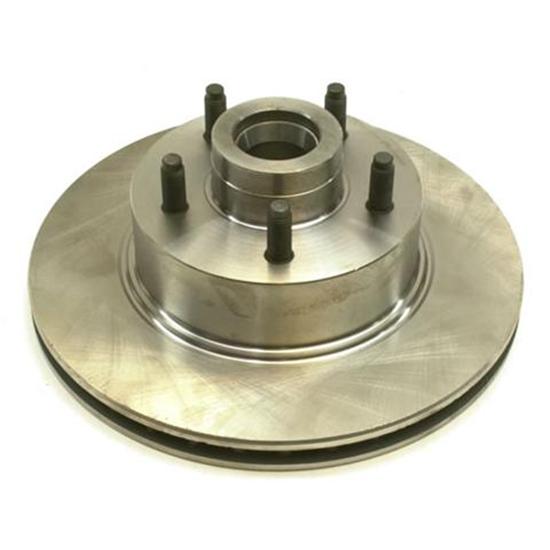

11 Inch Ford Disc Brake Rotors

Specs
Sold in Quantity:
Each
Bolt Pattern:
5 on 4.5"
Finish:
Natural
Rotor Diameter:
11.00
Rotor Construction:
Vented
Material Type:
Cast Iron
Rotor Location:
Front
Rotor Shape:
Round
Thread Pitch:
1/2"-20
MFG. Part #:
910-31066
Drilled:
No
Slotted:
No
Stud Length:
1.29
Stud Diameter:
0.50
Rotor Thickness:
0.88
Weight:
20.55
Notes
NOT interchangable with rotor 91031067. If you have the brackets and adapters designed for the Granada rotor, the GM rotor 91031067 will not fit.
11 Inch Ford Disc Brake Rotors
VIDEO
11 Inch Ford Disc Brake Rotors

Click image to enlarge

Details

Reviews (3)

Q & A (4)

What's in the Box

Info

This disc brake rotor was OEM on:

  • 1975-1980 Ford Granada
  • 1974-1977 Ford Maverick
  • 1977-1980 Lincoln Versailles
  • 1974-1977 Mercury Caliente, Comet
  • 1975-1980 Mercury Monarch

NOT interchangable with rotor 91031067. If you have the brackets and adapters designed for the Granada rotor, the GM rotor 91031067 will not fit. Very common rotor to use as a conversion rotor.

Customer Reviews

Rated 4.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Joyer
Verified Purchaser
Verified Reviewer
Lebanon, OH

Great Quality

March 01, 2016
Used this with Speedway's mustang II IFS on a 1949 Chevy with steelies and it works just fine. Quiet ride. Handles fine.
Pros:
  • Fits Speedway Mustang Ii
  • Well Made
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

John
Verified Purchaser
Verified Reviewer
NH

got exactly what I expected

October 18, 2015
Same as what you'll find at a local parts store. Probably made in China like almost every rotor these days but the quality is decent and fitment is perfect.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

troy
sacramento, ca

great product, fit perfictley

February 11, 2010
bigger rotors, better braking
Pros:
  • Good clearance
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

1 answers

What is center hub diameter? Trying to fit aftermarket wheels to this rotor. Most wheel applications are for late model cars so a custom fit might be required. What is the center hub diameter to ensure this will fit inside the center bore on new wheels? Also, would a hub centering ring be required?

BrianD
Gilbert, AZ
September 26, 2013

What is center hub diameter? Trying to fit aftermarket wheels to this rotor. Most wheel applications are for late model cars so a custom fit might be required. What is the center hub diameter to ensure this will fit inside the center bore on new wheels? Also, would a hub centering ring be required?

Answers

September 27, 2013
Jason
This 11" Ford disc rotor has a hub od of 2.770". The use of a hub centering ring will depend on the wheels being used. Most wheel manufacturers design their wheels with a centerbore large enough to fit on most cars. Therefore, since wheel manufactures make their center bore large enough to fit most cars, most wheel fitments have a gap between the hub and the centerbore. This gap usually doesn't allow for the wheel to fit hubcentric but rather lugcentric which can cause a vibration.
1 answers

Does this particular rotor use the same bearings as a stock drum and hub set up or do I have to buy new bearings? My old bearings I just replaced about 6months ago I would like to reuse them.

September 30, 2011

Does this particular rotor use the same bearings as a stock drum and hub set up or do I have to buy new bearings? My old bearings I just replaced about 6months ago I would like to reuse them.

Answers

October 03, 2011
Jason
If using this rotor on the following OEM application, your bearings should work. 75-80 FORD GRANADA 74-77 FORD MAVERICK 77-80 LINCOLN VERSAILLES 74-77 MERCURY CALIENTE, COMET 75-80 MERCURY MONARCH If usinf on Chevy spindles, you will need to replace outer race
1 answers

what size are the wheel studs on this rotor. would be helpful if this was included in the description, thanks.

cforcht
chelsea, iowa
May 02, 2012

what size are the wheel studs on this rotor. would be helpful if this was included in the description, thanks.

Answers

May 04, 2012
Jason
This rotor has 1/2" studs
2 answers

What caliper brackets do I need to mount GM metric calipers to a mustang II spindle with this rotor? The caliper brackets seem to be listed as Hybrid or 10 1/2" brackets, I don't see an 11 inch bracket. Thanks

October 31, 2011

What caliper brackets do I need to mount GM metric calipers to a mustang II spindle with this rotor? The caliper brackets seem to be listed as Hybrid or 10 1/2" brackets, I don't see an 11 inch bracket. Thanks

Answers

July 02, 2015
Eric
Expert
This rotor can be installed on the Mustang II spindles using bearing and seal kit number 91031052 and the metric caliper brackets number 91631914. If you already have the metric calipers this should all work together. Another option is a complete conversion kit number 91031944 which includes everything from the hub dust cover, spindle nuts, etc. all the way into the rubber flex lines that go to the frame.
November 01, 2011
John
Part # 91031066 This rotor can be installed on the Mustang II spindles using bearing and seal kit number 91031052 and the metric caliper brackets number 91631914. If you already have the metric calipers this should all work together. Another option is a complete conversion kit number 91031944 which includes everything from the hub dust cover, spindle nuts, etc. all the way into the rubber flex lines that go to the frame.
