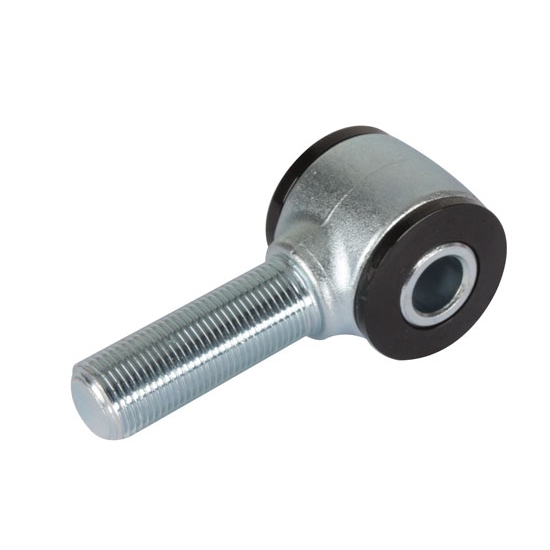

Front Suspension Hardware, 11/16 In Threaded Steel Four-Bar Rod End RH

Front Suspension Hardware, 11/16 In Threaded Steel Four-Bar Rod End RH
Front Suspension Hardware, 11/16 In Threaded Steel Four-Bar Rod End RH
Front Suspension Hardware, 11/16 In Threaded Steel Four-Bar Rod End RH

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

We have in stock a large range of rod ends to suit every application.  For shear strength there is nothing better than our solid rod end, made from premium grade steel material, these are capable of handling the most concentrated forces.

Front Suspension Hardware, 11/16 Inch Threaded Steel Four-Bar Rod End RH

  • Forged steel
  • 11/16"-18 RH threads
  • Straight shank
  • Nylon bushings with steel sleeve
  • Accepts 1/2" bolt

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

What bushing kit can I order to replace my worn bushings?

1 answers
Fordnatik
March 12, 2015

What bushing kit can I order to replace my worn bushings?

Answers

March 20, 2015
EricM
Kit number 91008015 fits rod ends with a 1.137 I.D. and width of 1.050 to check against your rod end dimensions. The sleeve length is 1.375.

can I use this 11/16" threaded steel four-bar rod ends on 36" curtis style radius rods?

1 answers
leeslakehouse
lakehead, ca
December 14, 2014

can I use this 11/16" threaded steel four-bar rod ends on 36" curtis style radius rods?

Answers

December 15, 2014
EricM
Yes this can be used on the chassis side of the 36" Curtis style radius rods such as part number 91645114. The axle side of those will not accept this end however. That radius rod has 5/8" thread on the axle end.

what is the width and diameter of these?

1 answers
Tracey
Poteau, OK, USA
March 13, 2013

what is the width and diameter of these?

Answers

March 13, 2013
Jason
The threaded steel four bar end has an od of 1.470", id with steel sleeve is .50" and with out sleeve is .750". It is 1.400" wide
