1 Inch LED 1156 Light Bulbs

Price:$8.99
Click image to enlarge Click image to enlarge
  • 1 Inch LED 1156 Light Bulbs
  • 1 Inch LED 1156 Light Bulbs
  • 1 Inch LED 1156 Light Bulbs
No video at this time.

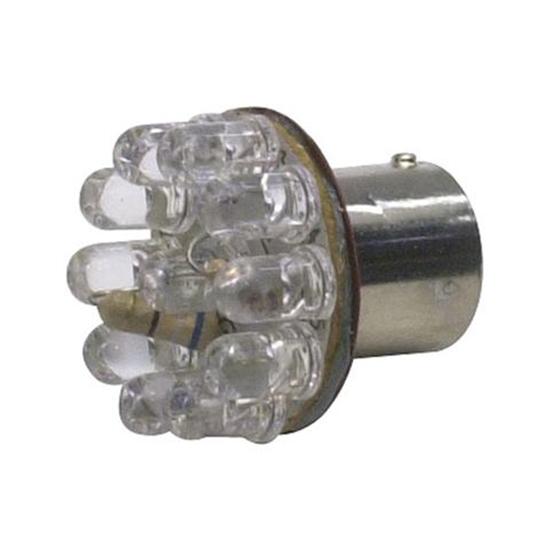

These LED bulbs put out the light you're after, but don't get hot like normal bulbs. 1" diameter, red or amber, and 1156. 1156 have the pins straight across and a single contact.

The bulbs appear to be clear, but are the correct color when illuminated.



NOTE: LED bulbs are quite efficient and use such small amounts of power that a normal flasher will not work correctly. The use of LED's will almost always require the use of a special "low load" flasher like our 910-64110 (2-prong) or 910-64112 (3-prong.)

911-31020

  • 1" diameter red LED array which contains 11 bulbs (one in the center and 10 on the perimeter)
  • The bulbs are 5 mm in diameter and 8 mm long
  • The mount shell is the standard BA15S single pin bayonet (1156 style) which measures .590 diameter (15 mm), .750 long (19 mm)
  • Overall length of the bulb assembly is 1.175" (26mm)
  • It has a 15 degree angle of view (the brightest)
  • Draws approximately 30 milliamps
  • Provides 34 cp (or 6.6 lumens).
Reviews for Item #: 91131020
Be the first to review this product. Write a Review


Questions and Answers for Item #: 91131020

Get your questions answered by the community. Ask or answer questions below.

1 Question | 1 Answer
Displaying Questions
Processing

Q:

can I use this l.e.d. for a running light and a stop light or just a stop light?
